| import sys
import re
import csv
from datetime import datetime
from scapy.all import rdpcap, Raw, IP, TCP, UDP
RE_NODEID_TEXT = re.compile(rb'ns=\d+;(?:s=[^\s,;\"\']+|i=\d+|g=[0-9A-Fa-f\-]+|b=[A-Za-z0-9+/=]+)')
RE_NODEID_UTF16 = re.compile(rb'(?:n\0s\0=\0\d\0+\0;\0(?:s\0=\0[^\0,;\"\']+\0|i\0=\0\d\0+|g\0=\0[0-9A-Fa-f\-\0]+|b\0=\0[A-Za-z0-9+/=\0]+))', re.IGNORECASE)
def bytes_to_printable(b):
try:
return b.decode('utf-8', errors='ignore')
except:
return str(b)
def find_matches_in_payload(payload_bytes):
matches = []
for m in RE_NODEID_TEXT.finditer(payload_bytes):
try:
matches.append(m.group(0).decode('utf-8', errors='ignore'))
except:
matches.append(str(m.group(0)))
for m in RE_NODEID_UTF16.finditer(payload_bytes):
try:
s = m.group(0).decode('utf-16le', errors='ignore')
matches.append(s)
except:
cleaned = m.group(0).replace(b'\x00', b'').decode('utf-8', errors='ignore')
matches.append(cleaned)
seen = set()
uniq = []
for x in matches:
if x not in seen:
seen.add(x)
uniq.append(x)
return uniq
def scan_pcap(path):
print(f"[+] 读取 pcap：{path}")
pkts = rdpcap(path)
results = []
for idx, p in enumerate(pkts, start=1):
payload = b''
ts = None
src = dst = ""
if Raw in p:
payload = bytes(p[Raw].load)
else:
if TCP in p and hasattr(p[TCP], 'payload') and len(bytes(p[TCP].payload))>0:
payload = bytes(p[TCP].payload)
elif UDP in p and hasattr(p[UDP], 'payload') and len(bytes(p[UDP].payload))>0:
payload = bytes(p[UDP].payload)
ts = getattr(p, 'time', None)
if ts:
timestr = datetime.utcfromtimestamp(ts).strftime('%Y-%m-%dT%H:%M:%SZ')
else:
timestr = ""
if IP in p:
src = p[IP].src
dst = p[IP].dst
else:
src = getattr(p, 'src', '')
dst = getattr(p, 'dst', '')
if payload and len(payload) > 0:
matches = find_matches_in_payload(payload)
if matches:
for m in matches:
results.append({
'pkt_index': idx,
'time': timestr,
'src': src,
'dst': dst,
'nodeid': m,
})
return results
def print_results(results):
if not results:
print("[!] 未发现匹配的 NodeId（文本或 UTF-16LE）。若流量加密则需要解密后再分析。")
return

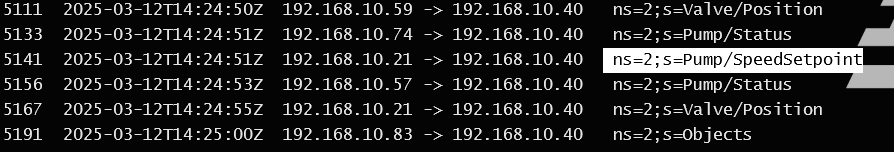

print(f"[+] 共发现 {len(results)} 条匹配：")
for r in results:
print(f"#{r['pkt_index']:6d} {r['time']} {r['src']} -> {r['dst']} {r['nodeid']}")
def save_csv(results, outpath):
with open(outpath, 'w', newline='', encoding='utf-8') as f:
writer = csv.DictWriter(f, fieldnames=['pkt_index','time','src','dst','nodeid'])
writer.writeheader()
for r in results:
writer.writerow(r)
print(f"[+] 已保存 CSV: {outpath}")
if __name__ == '__main__':
if len(sys.argv) < 2:
print("Usage: python find_nodeid_in_pcap.py traffic.pcap [-o out.csv]")
sys.exit(1)
pcap = sys.argv[1]
out = None
if len(sys.argv) >= 3 and sys.argv[2] in ('-o','--out') and len(sys.argv) >=4:
out = sys.argv[3]
res = scan_pcap(pcap)
print_results(res)
if out:
save_csv(res, out)
|
