第八届“强网”拟态防御国际精英挑战赛

低空经济网络安全

The Hidden Link

我们截获了一个名为“MAV1”的恐怖组织发出的无人机遥测下行数据。`capture.pcap`中的数据流量看起来很正常，是吗？
We've intercepted a drone's telemetry downlink from a terrorist group called "MAV1". The traffic in `capture.pcap` appears to be normal, or is it?

访问几个数据包就会发现有疑似 flag 的字符

用 strings 提取字符

Bk3d}
Bll3r
BflagJ
B{dr0
Bt_c0:
Bntr0
B_h4c!
Bn3_f
Bl1gh

去掉多余字母和标点符号，拼好 flag

flag{dr0n3_fl1ght_c0ntr0ll3r_h4ck3d}

Mobile

EZMiniAPP

未加密，可以直接用 wxappUnpacker 反编译

在 chunk_0.appservice.js 文件中找到主函数，customEncrypt 是加密函数，有校验

密文 ： [1, 33, 194, 133, 195, 102, 232, 104, 200, 14, 8, 163, 131, 71, 68, 97, 2, 76, 72, 171, 74, 106, 225, 1, 65]

密钥 Key： “newKey2025!”

要找出输入字符串 a，使得 customEncrypt(a, "newKey2025!") 结果等于上面的密文数组，customEncrypt 直接调用了真正的加密函数 enigmaticTransformation

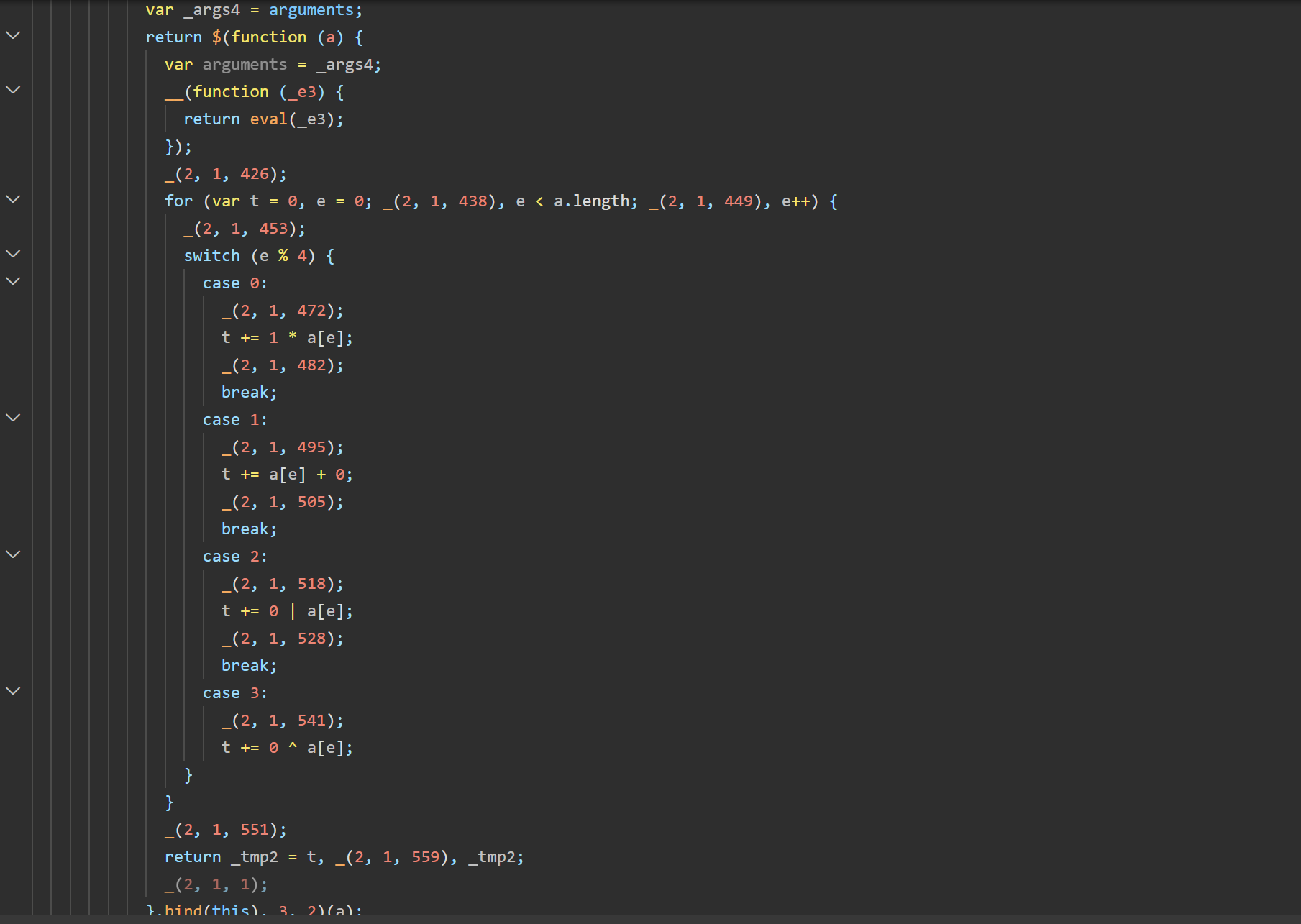

这里对密钥进行处理

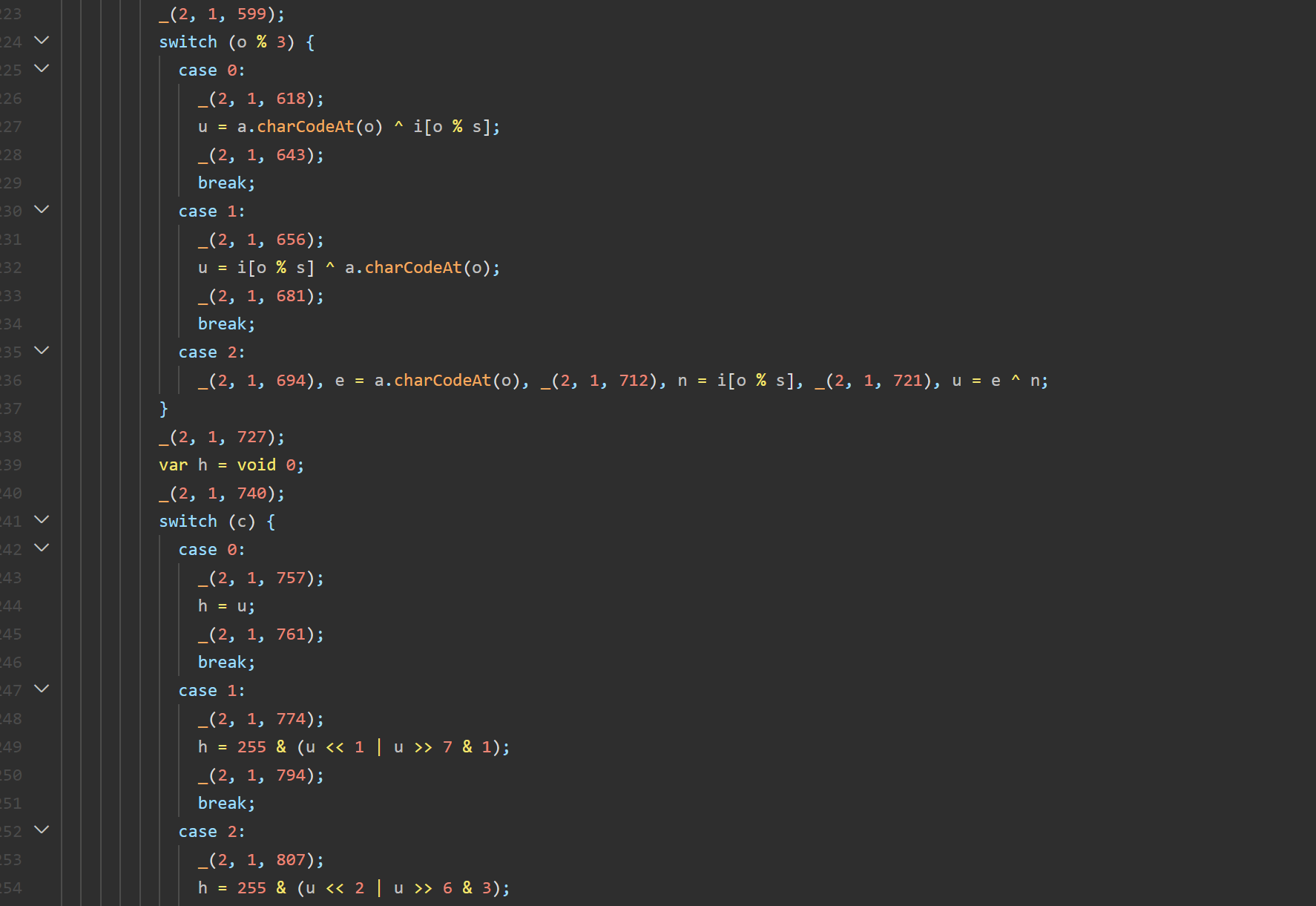

进行异或，用当前字符索引 o 对 3 取模的结果，采用不同的 XOR 规则

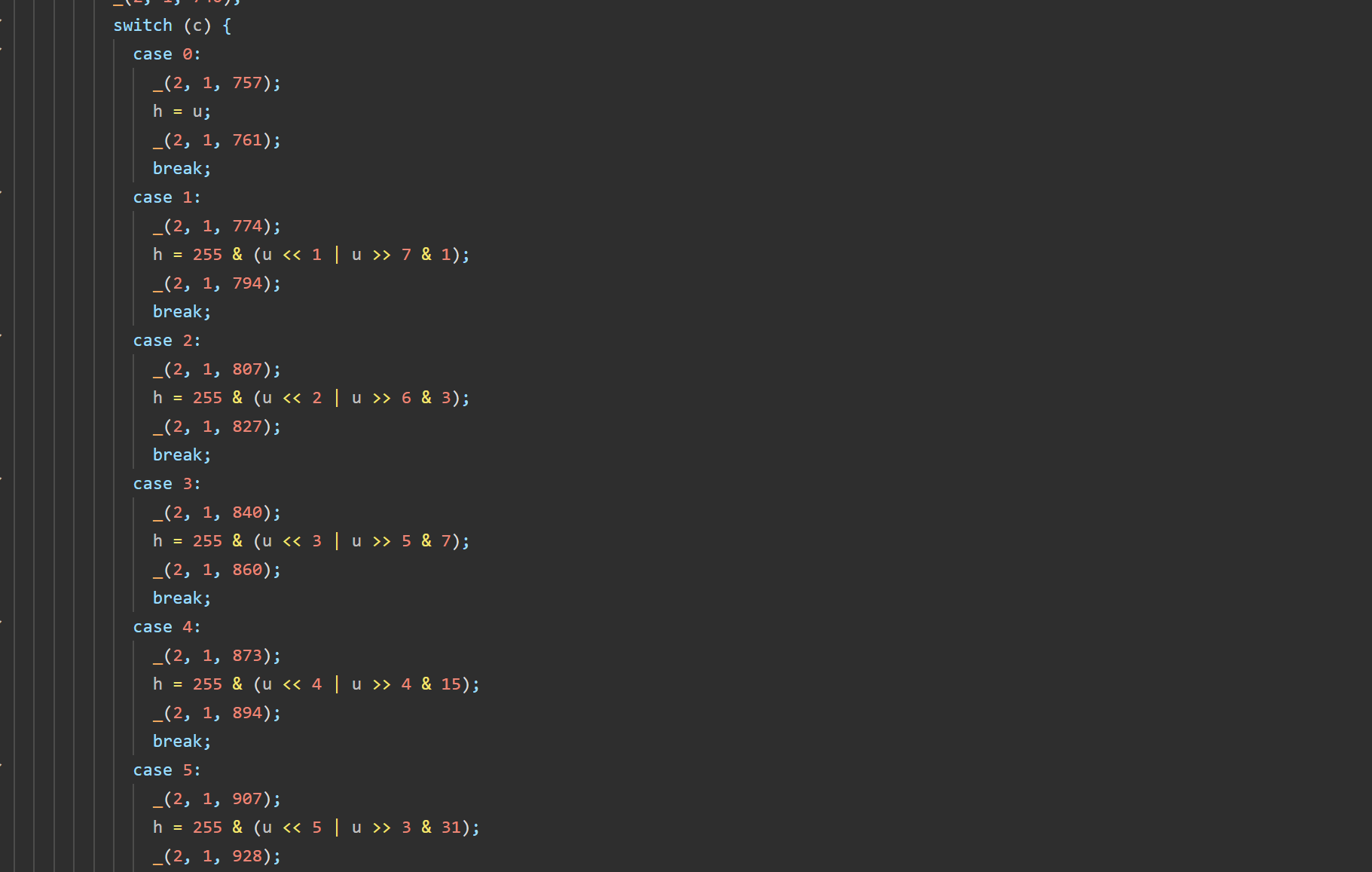

按照值 c 不同对异或的结果 u 进行不同的移位

脚本如下

import json

TARGET_CIPHER = [
    1, 33, 194, 133, 195, 102, 232, 104, 200, 14, 8, 163, 131,
    71, 68, 97, 2, 76, 72, 171, 74, 106, 225, 1, 65
]

KEY_STR = "newKey2025!"

def get_key_array(t_str):
    return [ord(c) for c in t_str]

def calculate_rotation_c(i_arr):
    t = 0
    for e, val in enumerate(i_arr):
        if e % 4 == 0:
            t += 1 * val
        elif e % 4 == 1:
            t += val + 0
        elif e % 4 == 2:
            t += 0 | val
        elif e % 4 == 3:
            t += 0 ^ val
    return t % 8

def circular_right_shift(value, shift):
    value &= 0xFF
    return ((value >> shift) | (value << (8 - shift))) & 0xFF

def enigmatic_decryption(cipher_arr, key_str):
    key_arr = get_key_array(key_str)
    s = len(key_arr)
    c = calculate_rotation_c(key_arr)

    decrypted_bytes = []

    for o, h in enumerate(cipher_arr):
        u = circular_right_shift(h, c)
        key_stream_val = key_arr[o % s]

        original_char_code = u ^ key_stream_val

        decrypted_bytes.append(original_char_code)

    try:
        flag = "".join([chr(b) for b in decrypted_bytes])
        return flag
    except ValueError:
        return "无法解码为有效字符串，可能解密错误"

FLAG = enigmatic_decryption(TARGET_CIPHER, KEY_STR)

print(f"目标密文 (Target Cipher): {TARGET_CIPHER}")
print(f"使用的密钥 (Key): '{KEY_STR}'")
print("-" * 30)
print(f"计算出的旋转量 (c): {calculate_rotation_c(get_key_array(KEY_STR))}")
print(f"解密结果 (Flag): {FLAG}")

得到 flag

flag{JustEasyMiniProgram}

Just

il2cpp 在安卓上的加密应用

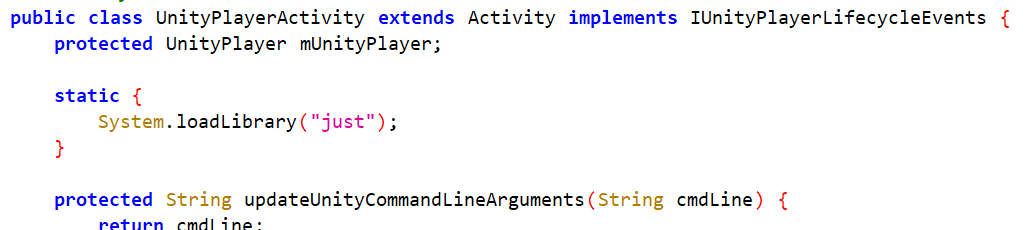

查看源码，发现在程序启动时会加载 libjust.so 文件

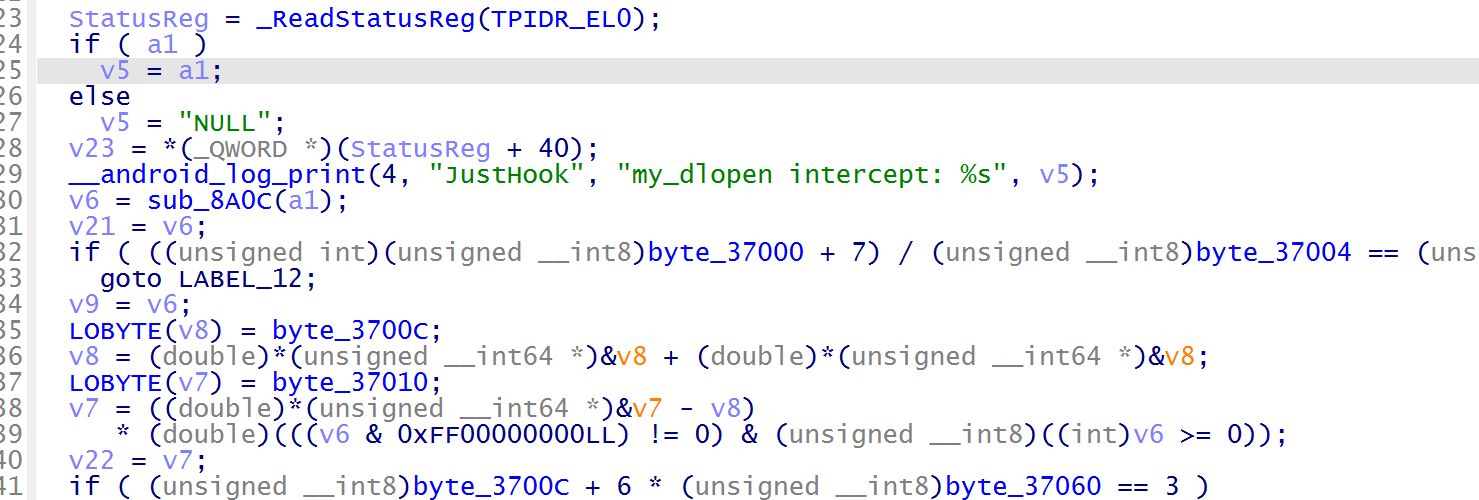

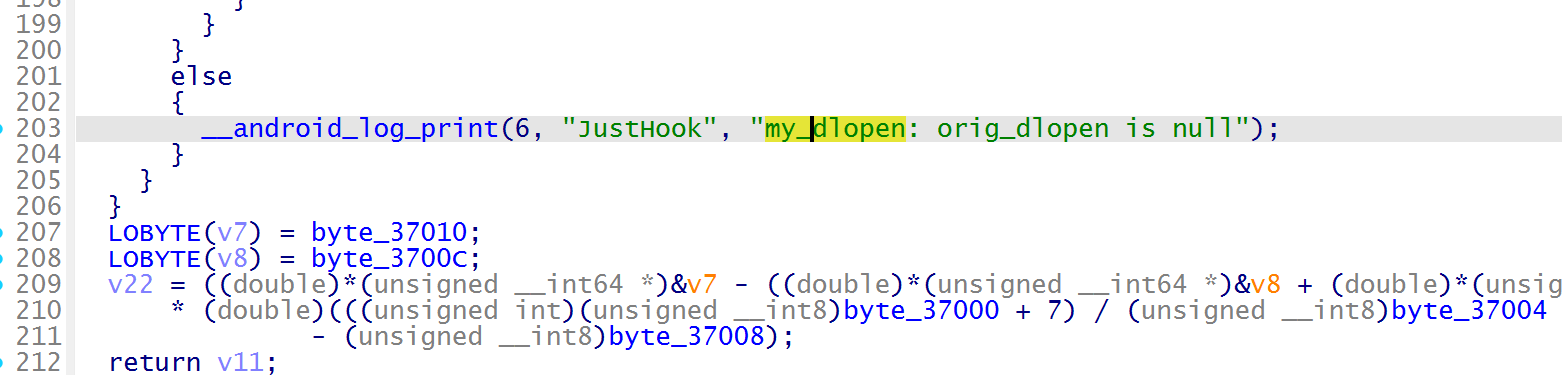

解包查看 libjust.so 文件，根据字符串定位到 sub_8288 函数，发现 hook 了dlopen

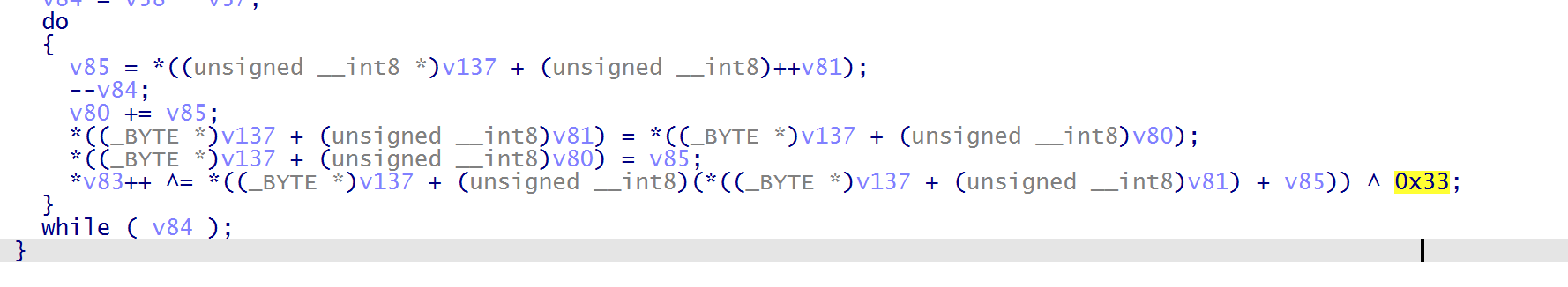

sub_8A0C 函数是校验函数，跟进分析，一个 RC4 的加密，异或 0x33

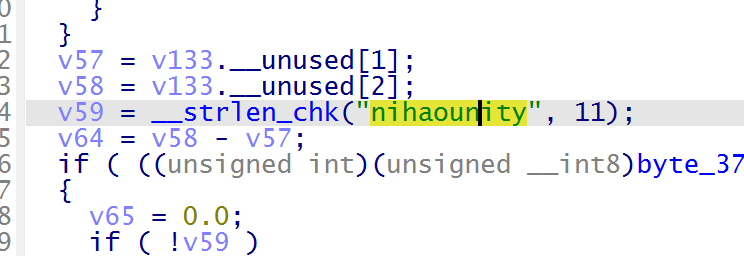

密钥为 “nihaounity”

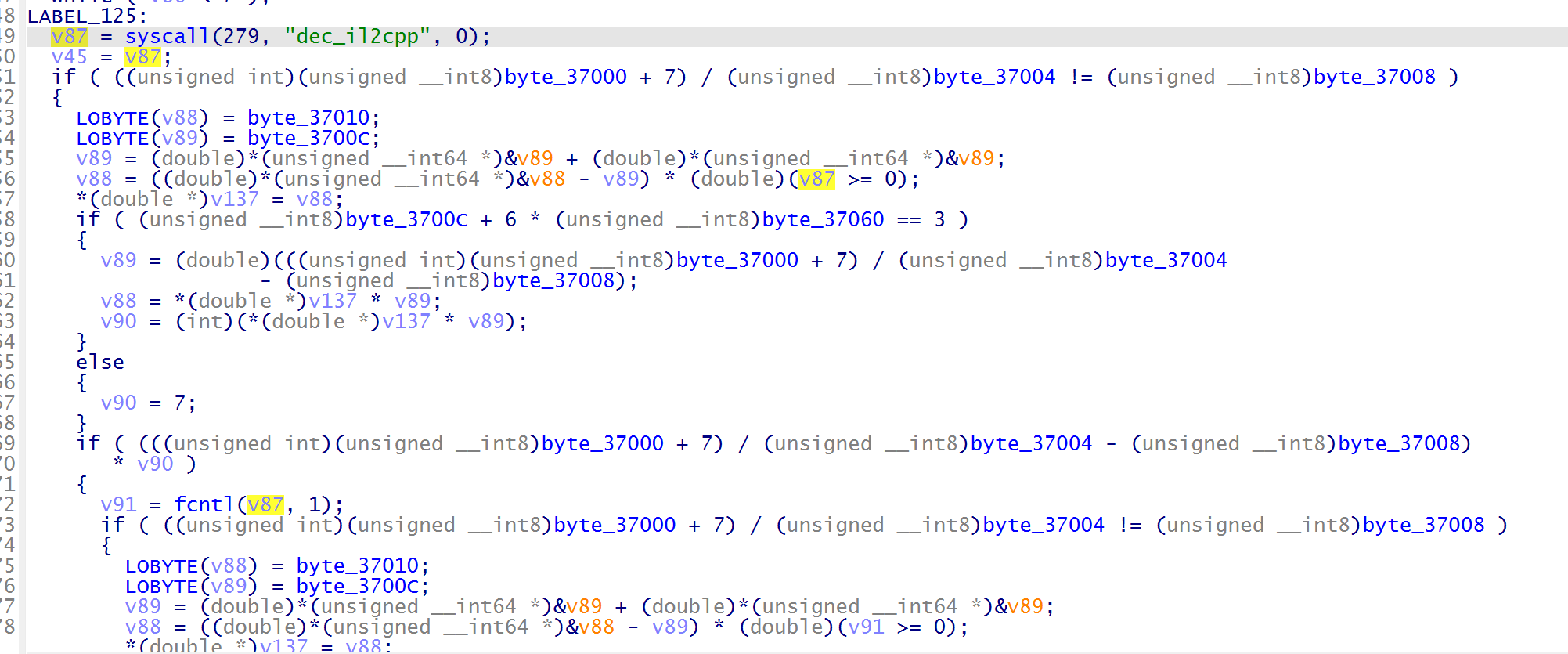

创建一个名为 “dec_il2cpp”的新文件，将解密后的内容写入此文件

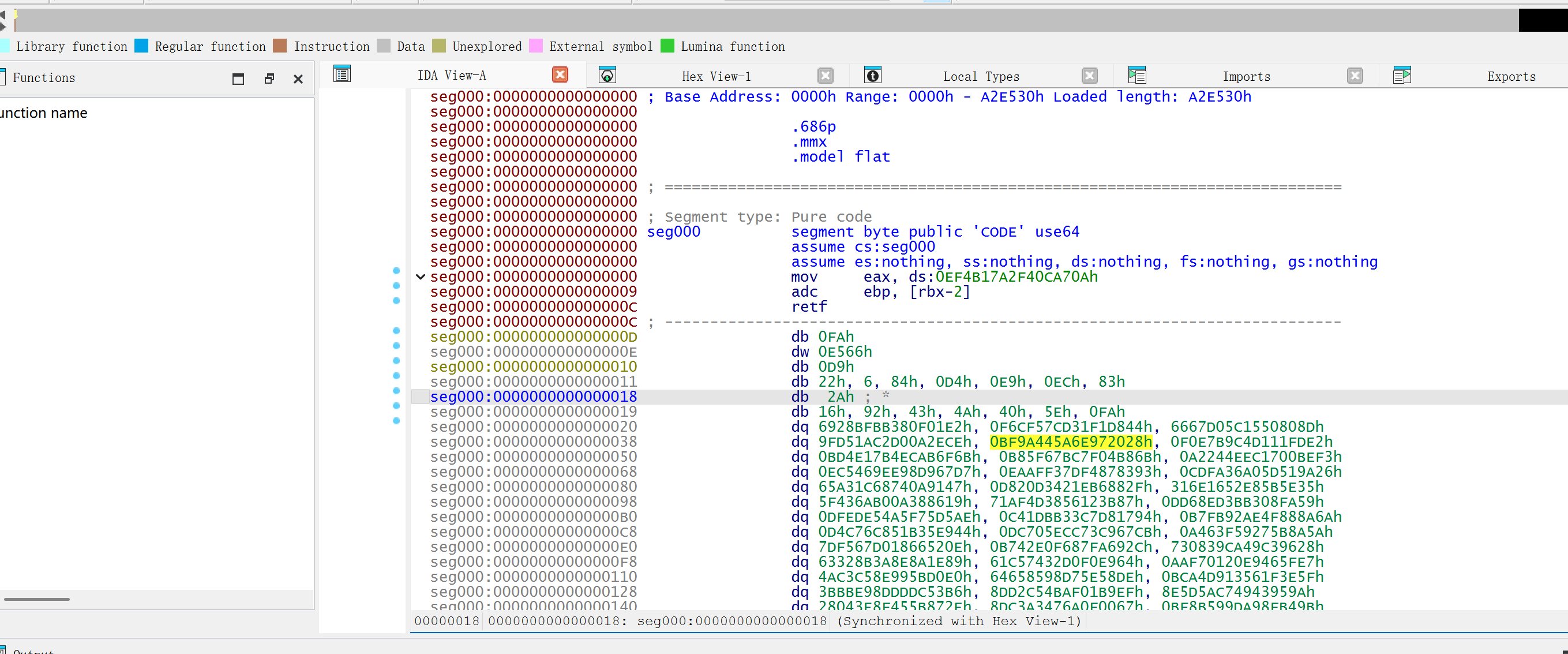

加载 il2cpp.so 文件，发现加载不出来，所以可能需要解密这个 il2cpp.so

根据加密逻辑和密钥用脚本解密 so 文件，脚本如下

import os
import sys

def decrypt_rc4_variant(data: bytes, key: str = "nihaounity", xor_constant: int = 0x33) -> bytes:

    key_bytes = key.encode('utf-8')
    key_len = len(key_bytes)
    data_len = len(data)

    s_box = list(range(256))

    j = 0
    for i in range(256):
        j = (j + s_box[i] + key_bytes[i % key_len]) % 256
        s_box[i], s_box[j] = s_box[j], s_box[i]
    i = 0
    j = 0
    decrypted_data = bytearray(data)

    for k in range(data_len):
        i = (i + 1) % 256
        j = (j + s_box[i]) % 256
        s_box[i], s_box[j] = s_box[j], s_box[i]
        t = (s_box[i] + s_box[j]) % 256
        keystream_byte = s_box[t]
        decrypted_data[k] = data[k] ^ keystream_byte ^ xor_constant

    return bytes(decrypted_data)

def main():

    input_path = sys.argv[1]
    output_path = sys.argv[2]
    KEY = "nihaounity"
    XOR_CONST = 0x33

    try:
        with open(input_path, 'rb') as f:
            encrypted_data = f.read()

        print(f"[*] 正在读取文件: {input_path} ({len(encrypted_data)} 字节)")
        print(f"[*] 解密密钥: '{KEY}', 异或常数: 0x{XOR_CONST:02x}")

        decrypted_data = decrypt_rc4_variant(encrypted_data, KEY, XOR_CONST)

        with open(output_path, 'wb') as f:
            f.write(decrypted_data)

        print(f"[+] 解密完成，文件已保存至: {output_path}")

    except FileNotFoundError:
        print(f"[!] 错误: 找不到文件 {input_path}")
    except Exception as e:
        print(f"[!] 发生错误: {e}")

if __name__ == "__main__":
    main()

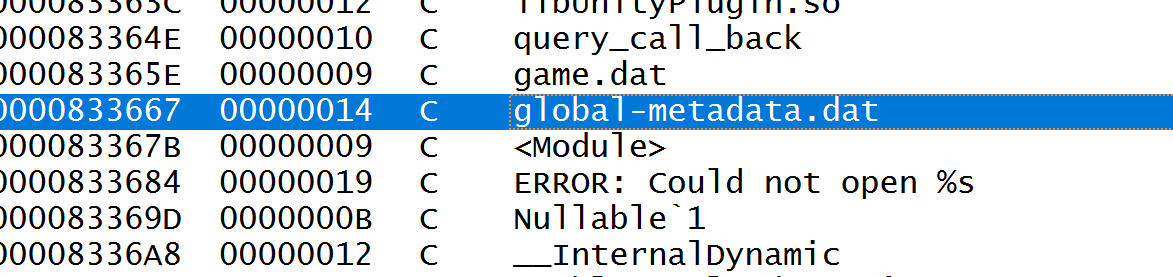

加载解密出来的 decil2cpp.so，文件很大，加载很慢，根据字符串的 global-metadata.dat 定位过去

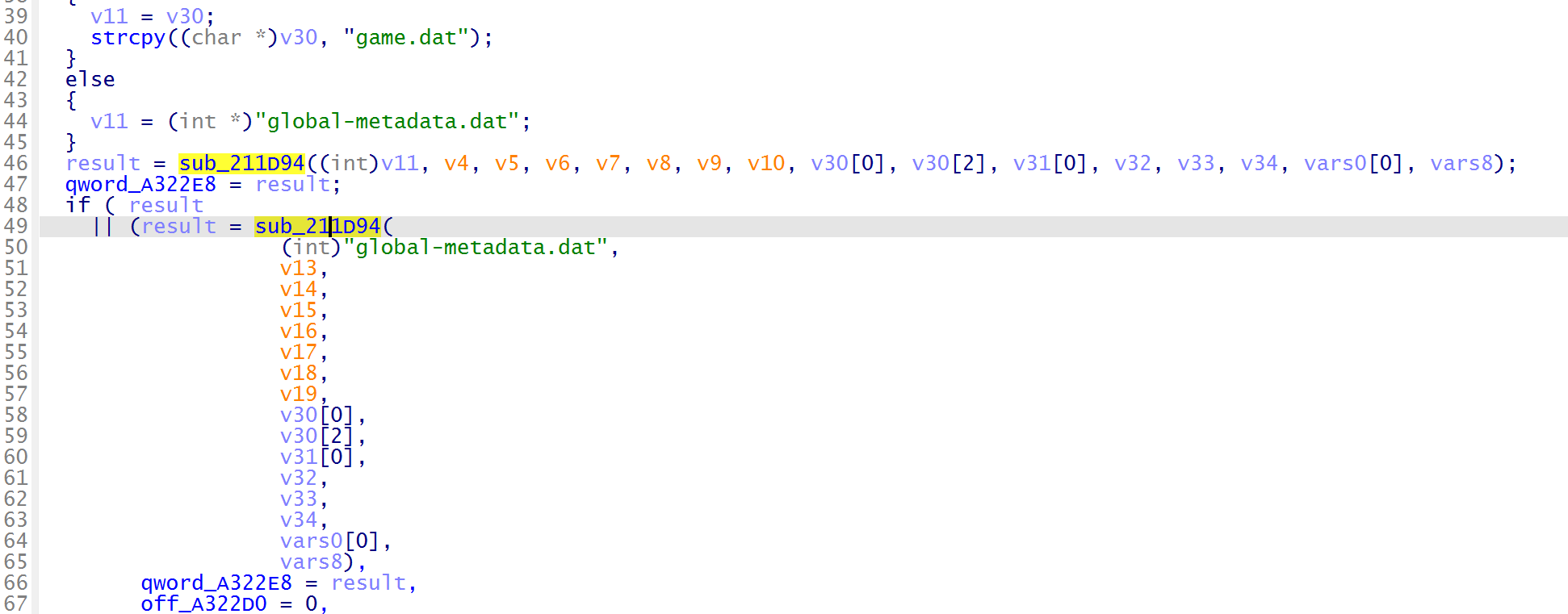

定位到 sub_211B8C 函数，发现这里在定位并加载元数据文件，调用了 sub_211D94 函数加载

跟进

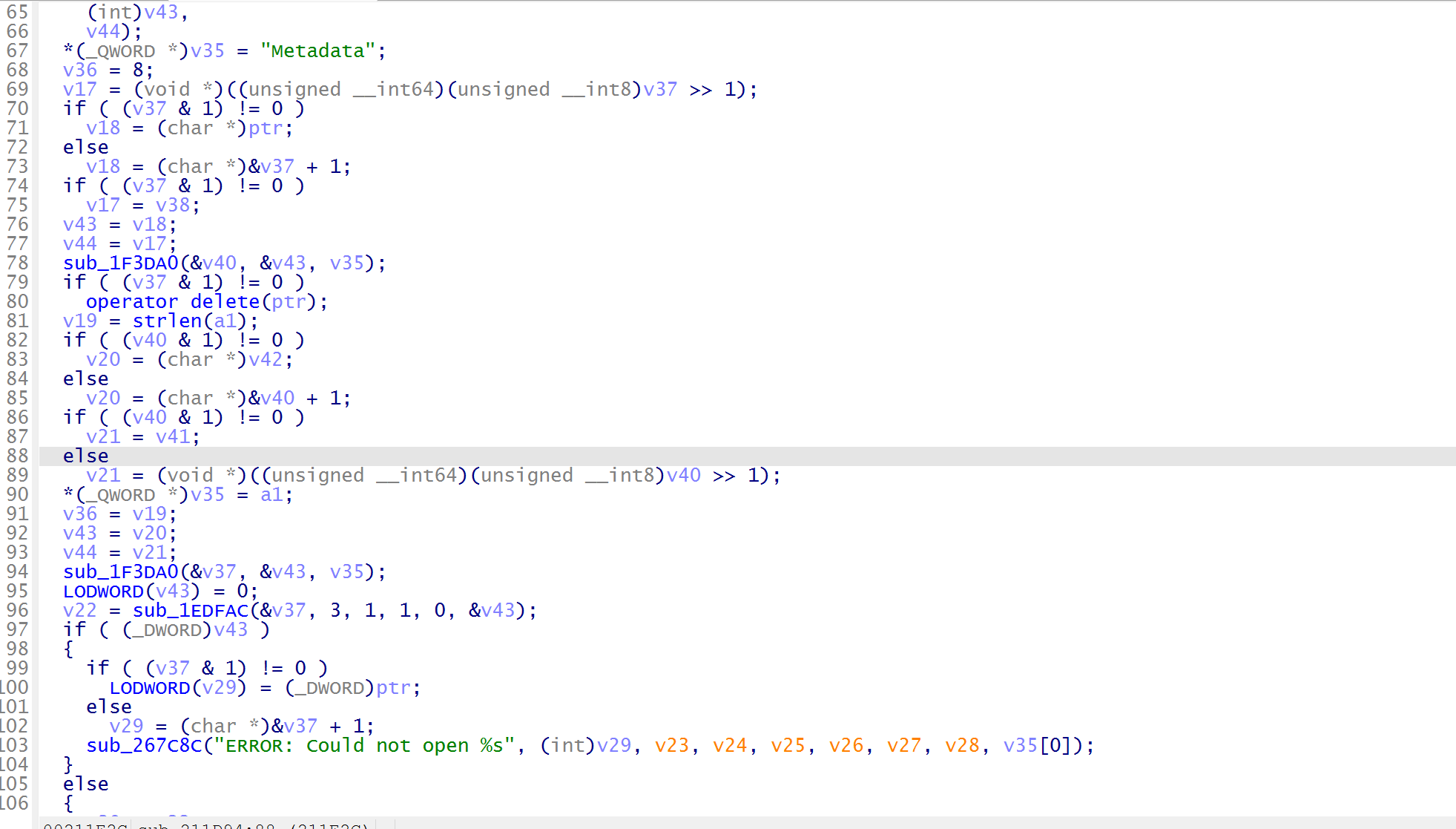

加载数据的地方，继续跟进

来到 sub_21A2C8，这是一个解密函数

char *__fastcall sub_21A2C8(unsigned __int16 *a1, __int64 a2)
{
  __int64 v2; // x21
  __int64 v4; // x8
  __int64 v5; // x22
  char *v6; // x19
  __int64 i; // x8
  __int64 v8; // x13
  __int64 v9; // x12

  v2 = a1[512];
  v4 = a2 - 4 * v2;
  v5 = v4 - 1028;
  v6 = (char *)malloc(v4 - 4);
  memcpy(v6, a1, 0x400u);
  if ( v5 >= 1 )
  {
    for ( i = 0; i < v5; i += 4 )
    {
      v8 = i + 3;
      v9 = i + i / v2;
      if ( i >= 0 )
        v8 = i;
      *(_DWORD *)&v6[(v8 & 0xFFFFFFFFFFFFFFFCLL) + 1024] = *(_DWORD *)((char *)&a1[2 * v2 + 514]
                                                                     + (v8 & 0xFFFFFFFFFFFFFFFCLL))
                                                         ^ *(_DWORD *)&a1[2 * (v9 % v2) + 514];
    }
  }
  return v6;
}

根据逻辑写解密脚本

import struct
import sys
import os

def decrypt_metadata_custom_xor(encrypted_data: bytes) -> bytes:
    data_len = len(encrypted_data)

    v2 = struct.unpack('<H', encrypted_data[1024:1026])[0]
    v5 = data_len - (4 * v2) - 1028
    decrypted_data = bytearray(encrypted_data)
    encrypted_data_base_offset = 4 * v2 + 1028
    keystream_base_offset = 1028

    i = 0
    while i < v5:
        v9 = i + i // v2
        keystream_index = v9 % v2
        keystream_offset = keystream_base_offset + keystream_index * 4
        encrypted_offset = encrypted_data_base_offset + i
        decrypted_offset = 1024 + i
        keystream_block = struct.unpack('<I', encrypted_data[keystream_offset:keystream_offset+4])[0]
        encrypted_block = struct.unpack('<I', encrypted_data[encrypted_offset:encrypted_offset+4])[0]
        decrypted_block = encrypted_block ^ keystream_block
        struct.pack_into('<I', decrypted_data, decrypted_offset, decrypted_block)

        i += 4

    print(f"[+] 解密完成。共处理 {i} 字节数据。")
    return bytes(decrypted_data)
    expected_output_len = data_len - (4 * v2) - 4

    if expected_output_len < len(decrypted_data):
        decrypted_data = decrypted_data[:expected_output_len]

    print(f"[+] 解密完成。共处理 {i} 字节数据。最终输出长度: {len(decrypted_data)} 字节")
    return bytes(decrypted_data)

def main():
    input_path = sys.argv[1]
    output_path = sys.argv[2]

    with open(input_path, 'rb') as f:
        encrypted_data = f.read()

    print(f"[*] 正在读取文件: {input_path} ({len(encrypted_data)} 字节)")
    decrypted_data = decrypt_metadata_custom_xor(encrypted_data)
    with open(output_path, 'wb') as f:
        f.write(decrypted_data)

    print(f"[+] 解密完成，文件已保存至: {output_path}")

if __name__ == "__main__":
    main()

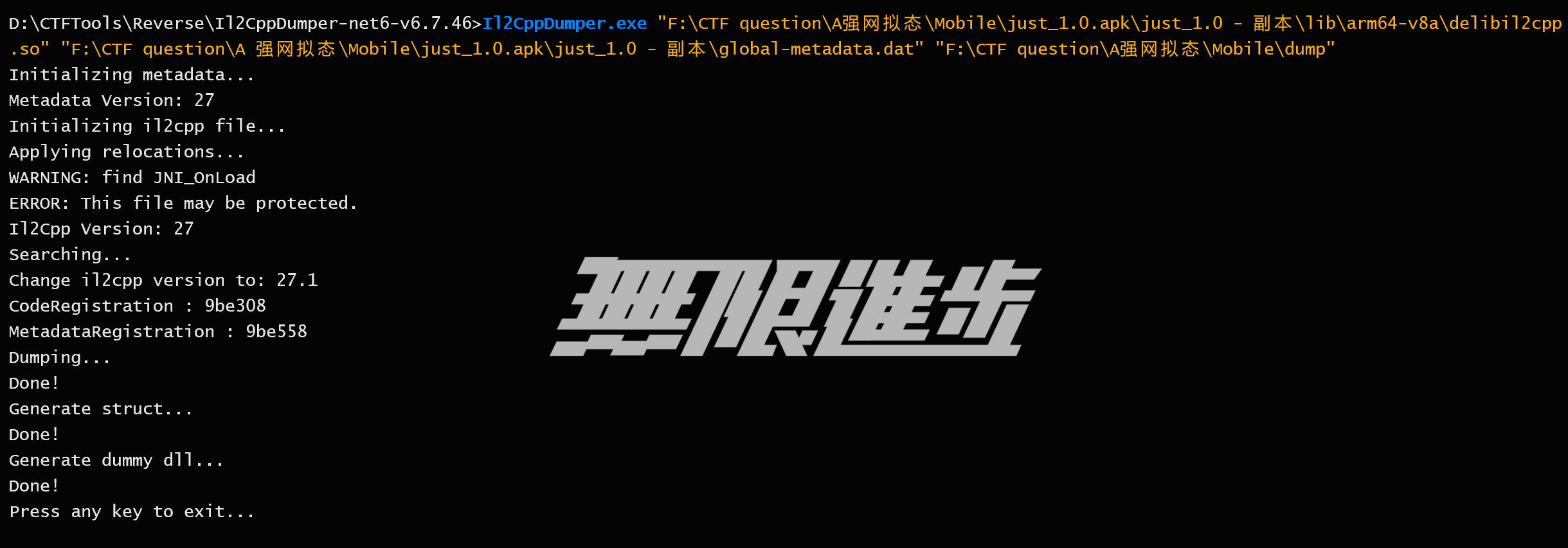

解密后的 dat 文件用 Il2CppDumper 直接解包

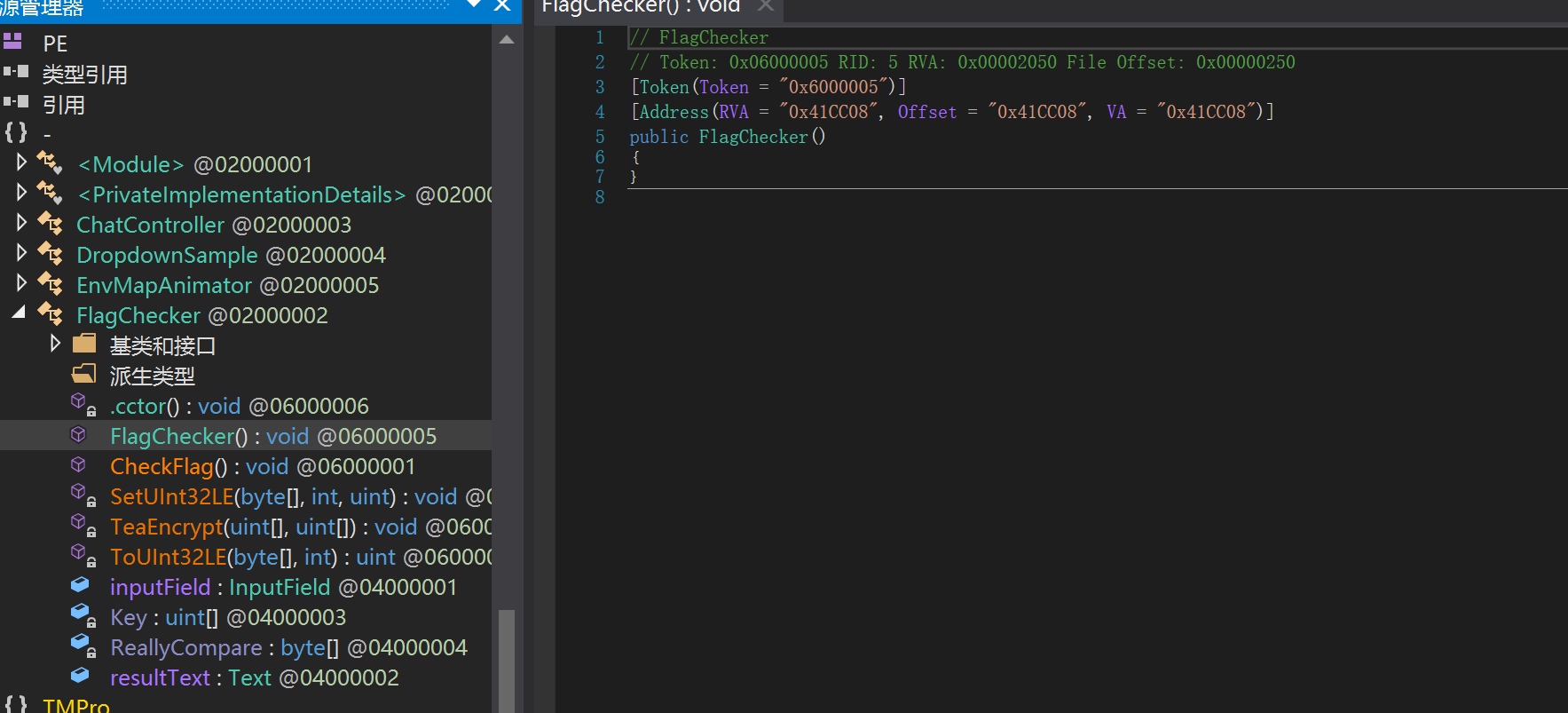

进入 DummyDll 目录，查看 Assembly-CSharp.dll，可以看到 Check 函数和加密函数

so 附加 Il2CppDumper 自动生成的 ida_py3.py 脚本和 script.json 文件恢复符号表，找 Flagchecker 看逻辑

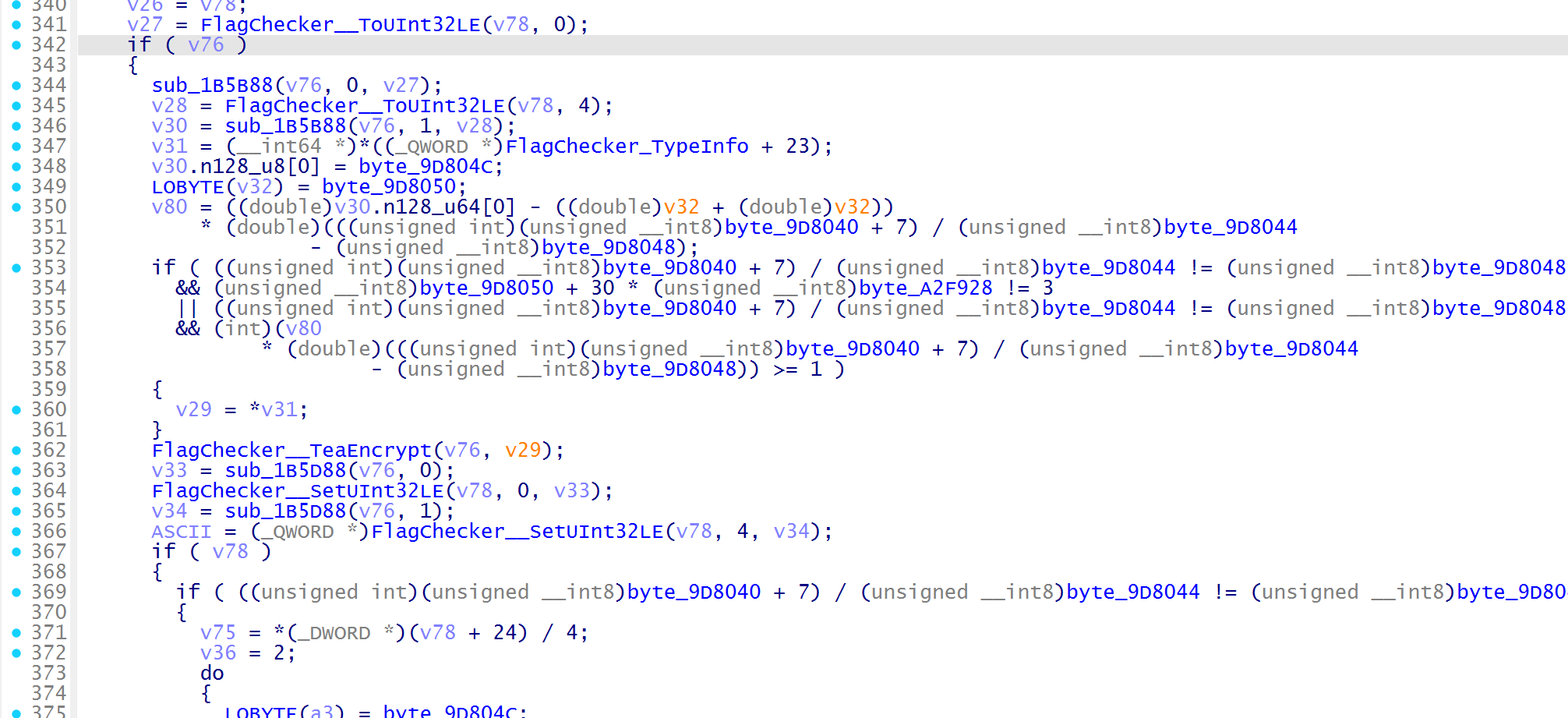

CheckFlag 函数中有加密，两段不一样的，前面对前 8 个字节进行 tea 加密，v78 是 40 字节的密文

后一段是对剩下的 32 字节处理，每 8 字节还与前一个 8 字节进行异或

观察 tea 函数，密文存在 a2 指向的内存位置

密文和密钥我没有环境，不好调试，在 cctor 中有初始化类的静态字段，初始化了密钥和密文，可以从这 Filed 去找

查看 dump.cs，搜索 PrivateImplementationDetails

internal sealed class <PrivateImplementationDetails> // TypeDefIndex: 2223
{
	// Fields
	internal static readonly <PrivateImplementationDetails>.__StaticArrayInitTypeSize=40 29FC2CC7503351583297C73AC477A5D7AA78899F3C0D66E1F909139D4AA1FFB2 /*Metadata offset 0xF901D*/; // 0x0
	internal static readonly <PrivateImplementationDetails>.__StaticArrayInitTypeSize=16 C8E4E9E3F34C25560172B0D40B6DF4823260AA87EC6866054AA4691711E5D7BF /*Metadata offset 0xF9045*/; // 0x28
}

这里找到了偏移 0xF901D 和 0xF904，直接按结构偏移读 global-data.dat 的数据

import sys, binascii
from pathlib import Path

META_PATH = "g-d.dat"

DEFAULTS = {
    "Ciphertext_40": {"offset": 0xF901D, "size": 40},
    "XTEAKey_16": {"offset": 0xF9045, "size": 16},
}

def main():
    meta = Path(META_PATH)
    if not meta.is_file():
        print(f"metadata file not found: {META_PATH}")
        sys.exit(1)

    data = meta.read_bytes()

    cipher = key = None
    for name, info in DEFAULTS.items():
        off = info["offset"]
        size = info["size"]
        if off >= len(data):
            continue
        blob = data[off:off + size]
        if "Ciphertext" in name:
            cipher = blob
        elif "Key" in name:
            key = blob

    if cipher:
        print("Ciphertext HEX:", binascii.hexlify(cipher).decode().upper())
    if key:
        print("Key HEX       :", binascii.hexlify(key).decode().upper())

if __name__ == "__main__":
    main()

拿到密文和密钥

Ciphertext HEX: AF5864409DB92167AEB529049E86C543230FBFA6B2AE4AB5C569B7A803D1AECFC62C5B7FA2861E1A
Key HEX       : 78563412121110091615141318171615

解密逻辑：最开始对最前 8 个字节进行 tea 解密，随后的 32 字节每 8 字节要与前一个 8 字节进行异或，从后往前循环

import struct
import binascii

ROUNDS = 16
DELTA = 0x61C88647
MASK = 0xFFFFFFFF

KEY_BYTES = binascii.unhexlify("78563412121110091615141318171615")
KEY_WORDS = struct.unpack('<IIII', KEY_BYTES)

CIPHERTEXT_HEX = "AF5864409DB92167AEB529049E86C543230FBFA6B2AE4AB5C569B7A803D1AECFC62C5B7FA2861E1A"
CIPHERTEXT_BYTES = bytearray(binascii.unhexlify(CIPHERTEXT_HEX))

def decrypt_block(v0, v1, key_words):
    k0, k1, k2, k3 = key_words
    s = (0 - DELTA * ROUNDS) & MASK
    for _ in range(ROUNDS):
        s = (s + DELTA) & MASK
        v1 = (v1 - (((v0 << 4) + k2) ^ (v0 + s) ^ ((v0 >> 5) + k3))) & MASK
        v0 = (v0 - (((v1 << 4) + k0) ^ (v1 + s) ^ ((v1 >> 5) + k1))) & MASK
    return v0, v1

def decrypt_data(cipher_bytes, key_words):
    for i in range(8, 0, -2):
        c0, c1 = struct.unpack('<II', cipher_bytes[0:8])
        offset = i * 4
        ci, cj = struct.unpack('<II', cipher_bytes[offset:offset+8])
        pi = ci ^ c0
        pj = cj ^ c1
        cipher_bytes[offset:offset+8] = struct.pack('<II', pi, pj)
        dv0, dv1 = decrypt_block(c0, c1, key_words)
        cipher_bytes[0:8] = struct.pack('<II', dv0, dv1)
    f0, f1 = struct.unpack('<II', cipher_bytes[0:8])
    rf0, rf1 = decrypt_block(f0, f1, key_words)
    cipher_bytes[0:8] = struct.pack('<II', rf0, rf1)
    return cipher_bytes

def run_decryption():
    result = decrypt_data(CIPHERTEXT_BYTES, KEY_WORDS)
    flag = result.rstrip(b'\x00').decode('ascii', errors='ignore')
    print("Decrypted HEX:", binascii.hexlify(result).decode().upper())
    print("Decrypted ASCII:", flag)

if __name__ == "__main__":
    run_decryption()

得到 flag

flag{unitygame_I5S0ooFunny_Isnotit?????}

Reverse

hyperjump

vm 类型的题目

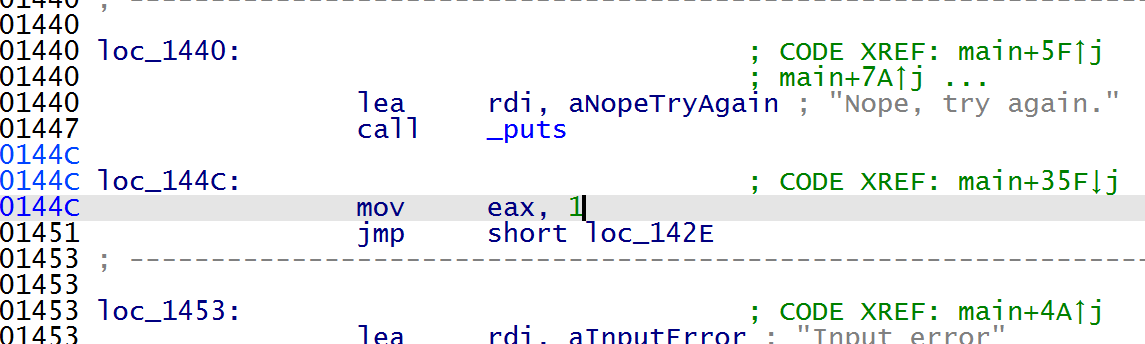

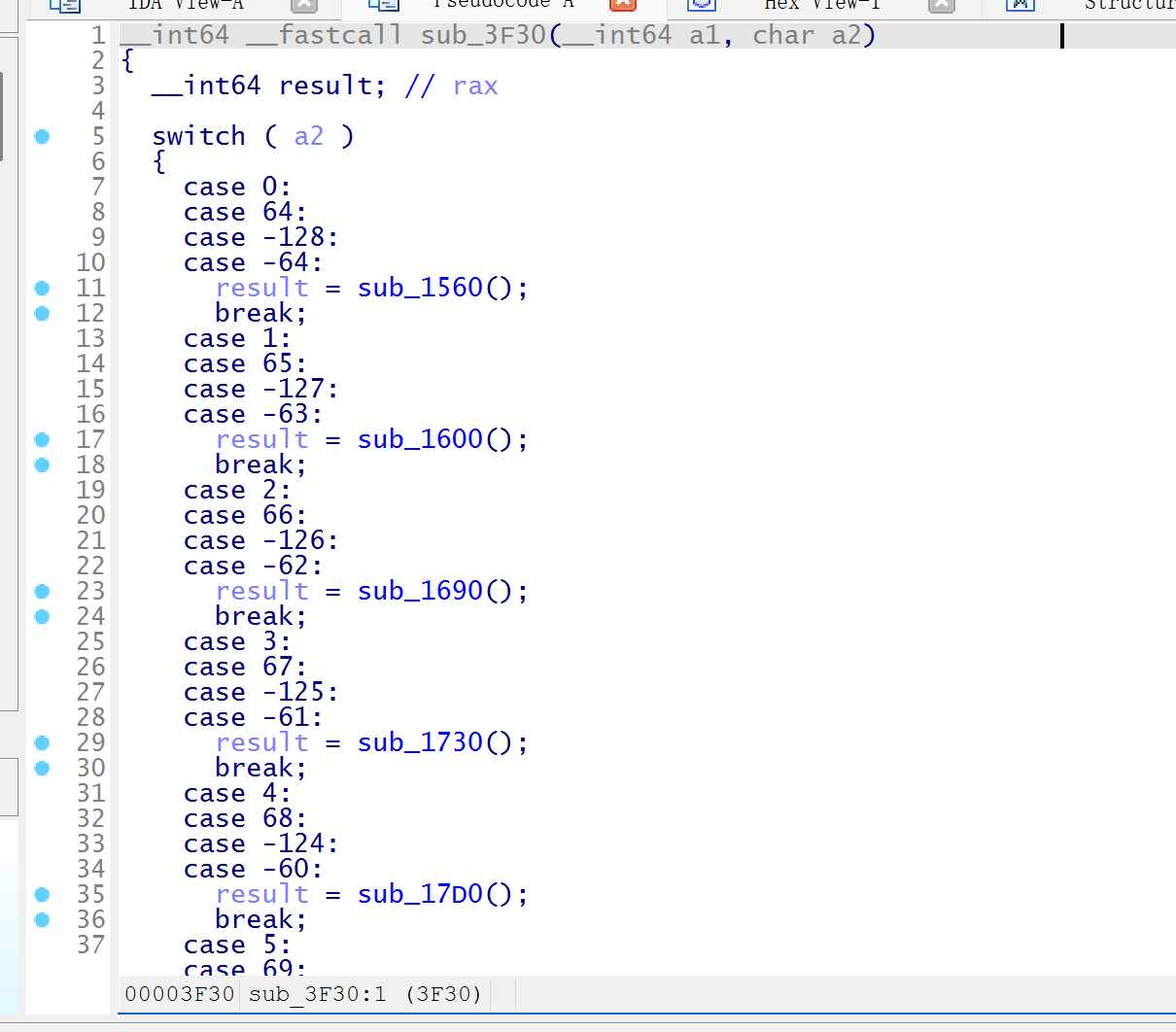

根进函数可以看到调度器，典型的 VM switch-case 结构

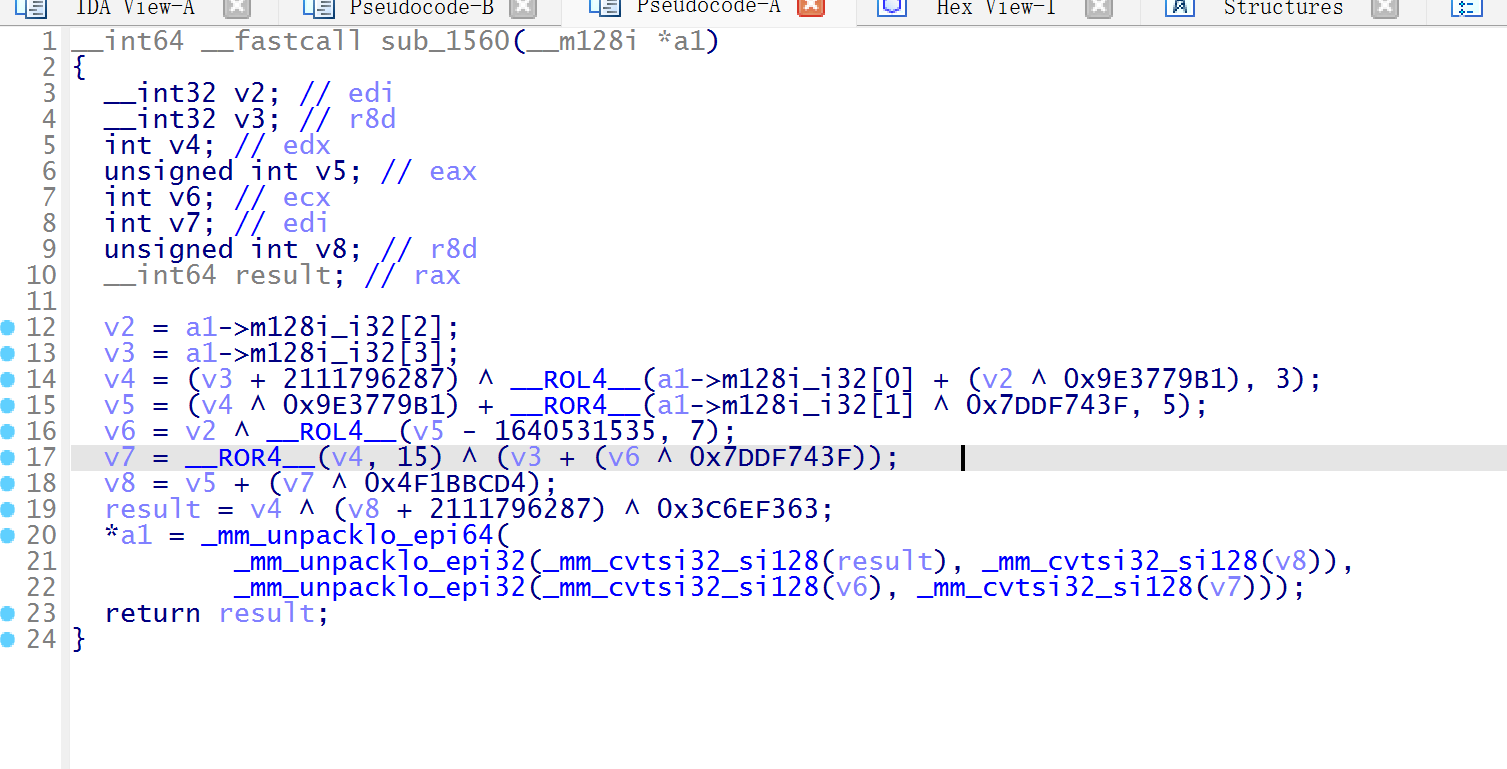

跟进 case 里跳转的函数可以看到这是 VM 指令处理器，有一些 VM 指令

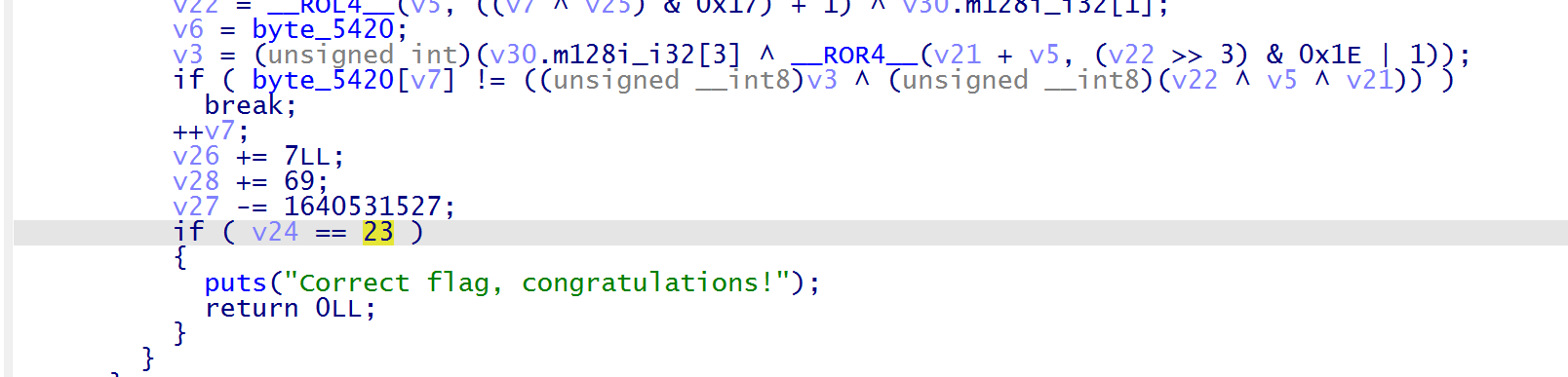

分析可知为单字节加密，输入长度为 24，这里的 v24 是字符串输入的索引

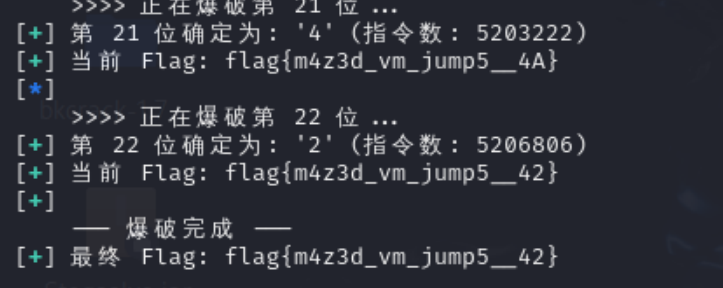

可以进行侧信道爆破，用 Pintools，并且题目还给了 md5 值

#!/usr/bin/env python3
import re
import string
import sys
import os
import subprocess
from pwn import *

# --- 1. 配置区 ---

TARGET_BINARY = os.path.abspath('./hyperjump')
FLAG_LEN = 24
START_INDEX = 0

PIN_ROOT = '/root/pin'
PIN_TOOL_PATH = os.path.abspath('./pin/source/tools/ManualExamples/obj-intel64/inscount0.so')

PIN_CMD_LIST = [os.path.join(PIN_ROOT, 'pin'), '-t', PIN_TOOL_PATH, '--', TARGET_BINARY]

CHARSET = string.ascii_lowercase + string.digits + "_@{}"

context.log_level = 'info'


# --- 2. 使用 subprocess 可靠获取 Pin 输出并解析指令数 ---

def read_inscount_outfile(workdir=None):
    candidates = ['inscount.out', 'inscount.txt', 'pin.out']
    for name in candidates:
        path = os.path.join(workdir if workdir else '.', name)
        if os.path.exists(path):
            try:
                with open(path, 'r', encoding='utf-8', errors='ignore') as f:
                    data = f.read()
                # 尝试解析数字
                m = re.search(r'(\d+)\s+instructions', data)
                if m:
                    return int(m.group(1)), data
                # 直接取第一个数字
                m2 = re.search(r'(\d+)', data)
                if m2:
                    return int(m2.group(1)), data
            except Exception:
                pass
    return None, None


def get_inscount(payload: bytes) -> int:

    IO_TIMEOUT = 5
    log.info(f"Testing payload: {payload.decode('latin-1')[:START_INDEX+1]}...")

    try:
        # 启动 Pin 并把 payload 发到 stdin
        # 注意：text=True 使 input/outputs 为 str 类型
        proc = subprocess.run(
            PIN_CMD_LIST,
            input=payload.decode('latin-1') + '\n',  # 把 payload 当作 stdin 发给程序
            capture_output=True,
            timeout=IO_TIMEOUT,
            text=True,
            cwd='.'  # 确保当前目录是工作目录（inscount 输出文件通常在 cwd）
        )

        stdout = proc.stdout or ""
        stderr = proc.stderr or ""
        exitcode = proc.returncode

        # 打印调试信息（PID 不好拿到，因为 subprocess.run 是阻塞调用）
        sys.stderr.write(f"\n--- Pin Tool 完整输出 (Exit Code {exitcode}): ---\n")
        if stdout.strip():
            sys.stderr.write("[stdout]\n" + stdout.strip() + "\n")
        if stderr.strip():
            sys.stderr.write("[stderr]\n" + stderr.strip() + "\n")
        sys.stderr.write("--------------------------------------------------\n")

        combined = stdout + "\n" + stderr

        # 1) 先在 combined 输出中查找像 "12345 instructions" 的形式
        match_re = re.search(r'(\d+)\s+instructions', combined, re.IGNORECASE)
        if match_re:
            return int(match_re.group(1))

        # 2) 再查找最后一行是数字的情况
        lines = combined.strip().splitlines()
        for line in reversed(lines):
            s = line.strip()
            if s.isdigit():
                return int(s)

        # 3) 检查常见的输出文件（inscount.out 等）
        file_count, file_content = read_inscount_outfile(workdir='.')
        if file_count is not None:
            # 可选：删除该文件以免后续干扰（如果你不想删除可以注释掉）
            try:
                os.remove('inscount.out')
            except Exception:
                pass
            return file_count

        # 4) 启发式判断：若退出码非 0 且输出包含拒绝信息，则视为无效（返回 0）
        low = combined.lower()
        if exitcode is not None and exitcode != 0:
            # 常见拒绝提示
            if any(k in low for k in ['nope', 'try again', 'wrong', 'incorrect']):
                return 0
            # 若 stderr 有 pin 自身的错误，返回 0
            if stderr.strip():
                return 0

        # 5) 若退出码是 0 且输出包含成功关键字，则返回非常大的计数作为 heuristic
        if exitcode == 0 and any(k in low for k in ['flag', 'correct', 'congrats', 'success']):
            return 10**9

        # 否则无法解析到有效信息
        log.warning("无法从 Pin 输出或文件中解析到指令数（stdout/stderr/file 均无数字）。")
        return 0

    except subprocess.TimeoutExpired as te:
        sys.stderr.write(f"[TIMEOUT] Pin 运行超时: {te}\n")
        return 0
    except FileNotFoundError as fe:
        sys.stderr.write(f"[FATAL] 找不到 pin 可执行文件或路径错误: {fe}\n")
        return 0
    except Exception as e:
        sys.stderr.write(f"[FATAL ERROR] get_inscount 发生错误: {e}\n")
        return 0


# --- 3. 爆破主循环 ---

def main():
    known_flag = list("A" * FLAG_LEN)
    log.info(f"开始爆破，长度 {FLAG_LEN}，字符集大小 {len(CHARSET)}，从索引 {START_INDEX} 开始。")

    if not os.path.exists(TARGET_BINARY):
        log.critical(f"目标文件不存在: {TARGET_BINARY}")
        return
    if not os.path.exists(PIN_TOOL_PATH):
        log.critical(f"Pin Tool 不存在: {PIN_TOOL_PATH}")
        return
    if not os.path.exists(PIN_CMD_LIST[0]):
        log.critical(f"Pin 可执行文件不存在: {PIN_CMD_LIST[0]}")
        return

    for i in range(START_INDEX, FLAG_LEN):
        log.info(f"\n>>>> 正在爆破第 {i} 位...")

        max_count = 0
        best_char = None

        for char in CHARSET:
            current_test = known_flag[:]
            current_test[i] = char
            payload = "".join(current_test).encode('latin-1')

            count = get_inscount(payload)

            if count == 0:
                continue

            if count > max_count:
                max_count = count
                best_char = char
                log.info(f"发现新的最大值: 字符 '{best_char}' -> {max_count} 条指令")

        if best_char:
            known_flag[i] = best_char
            log.success(f"第 {i} 位确定为: '{best_char}'")
            log.success(f"当前 Flag: {''.join(known_flag)}")
        else:
            log.warning(f"第 {i} 位爆破失败。所有字符返回 0。")
            break

    log.success(f"\n--- 爆破完成 ---")
    log.success(f"最终 Flag: {''.join(known_flag)}")


if __name__ == '__main__':
    main()

等一会儿

flag{m4z3d_vm_jump5__42}

还可以改文件字节码，让程序返回值为长度，修改 mov eax，1 为 mov eax，ebx，patch 为新文件

再利用 BFS 搜索进行单字节爆破

import string
import subprocess
import sys

FLAG_LENGTH = 24
CHARSET = string.ascii_letters + string.digits + string.punctuation

jobs = [(list("flag{"), 5)]
final_flags = set()

print("Starting BFS brute-force to find ALL passing flags...")
print("-" * 50)

while jobs:
    current_guess, i = jobs.pop(0)

    if i == FLAG_LENGTH:
        final_flags.add("".join(current_guess))
        continue

    res = []

    for char in CHARSET:
        test_guess = current_guess + [char] + ["A"] * (FLAG_LENGTH - i - 1)
        input_data = "".join(test_guess).encode()

        try:
            p = subprocess.run(
                ["./hyperjump_patched"],
                input=input_data,
                timeout=10,
                capture_output=True
            )

            count = p.returncode
            if count == 0:
                 count = FLAG_LENGTH

        except subprocess.TimeoutExpired:
             count = -1
        except Exception:
             count = -1

        res.append((char, count))

    if not res:
        continue

    max_count = max(r[1] for r in res)

    if max_count <= 0:
        continue

    for char, count in res:
        if count == max_count:
            new_guess = current_guess + [char]
            jobs.append((new_guess, i + 1))
            current_flag = "".join(new_guess)
            output_line = f"[Index {i+1:02d}] Testing: {current_flag:<{FLAG_LENGTH}} (Max Match: {max_count}) | Jobs left: {len(jobs)})"
            sys.stdout.write(f"\r{output_line}")
            sys.stdout.flush()

print("\n" + "-" * 50)
if final_flags:
    print("🎉 Found ALL passing Flags:")
    for flag in sorted(list(final_flags)):
        print(f"   -> {flag}")
else:
    print("❌ No complete flag found.")
